Autel MS909 Diagnostic Tool

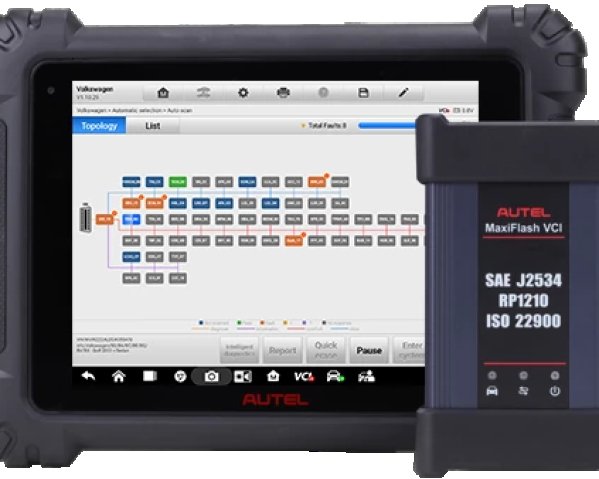

Autel Maxisys MS909 Diagnostic Tool
General Features:
Autel Maxisys MS909 is an improved version of Maxisys 908S Pro and Elite models, designed for diagnostic and programming operations. It supports more than 100 vehicles including European, Asian, American, Japanese, Korean and Chinese brands manufactured until 2023. It provides an easy-to-use experience with its fast update feature.
ECU Programming and Coding Functions:
Supports ECU coding and programming functions for brands such as BMW, Mercedes Benz, Audi, Ford, Fiat, Chrysler, Mazda, Hyundai, Nissan, Toyota in vehicles from 1996 to the present.
Autel Maxisys MS909 System Features:
Repair Assistance: Provides systematic analysis of faults, prioritizes DTCs and guides users step by step.
DTC Analysis: Provides definition, cause and possible solutions for diagnostic operations.
Vehicle Support: Supports vehicles such as GM, Ford, Fiat, Chrysler, Toyota-Lexus, Nissan, Honda, Volkswagen, Audi, BMW, Mercedes Benz, Jaguar and Land Rover.
Repair Tips: Detailed repair procedures are provided in text or videos.
Technical Services Bulletin (TSB): Provides current technical service bulletins from vehicle manufacturers such as Ford, GM, Fiat, Chrysler, Toyota, Nissan, Honda, BMW, Mercedes Benz, Audi, Volkswagen, Hyundai, Kia.
Automatic Detection: Automatically reads vehicle systems with VIN technology when OBD connector is connected.
Technical Specifications: Connection Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2).
Tablet Features:
Processor: Samsung Exynos 8895V Octa-core CPU (2.3GHz + 1.7GHz)
RAM: 4GB
Storage: 128GB
Cameras: Front camera 5 megapixels, rear camera 16 megapixels
Screen: 9.7 inch retina display
Battery: 15000mAh
Areas of Use:
Automotive Service Centers: Ideal for troubleshooting and maintenance operations in professional automotive services.
Vehicle Maintenance: Can be used by individual vehicle owners and maintenance professionals to monitor vehicle performance and troubleshoot faults.
Roadside Maintenance: A suitable solution for quick troubleshooting and repair of vehicles on the roadside.
Warranty and Support:
Warranty Period: 1 year warranty
Support: For any support and problems related to the product, you can contact customer service 24/7 or use the support section on our website.
